3KM 5 Bands 900mhz 2.4G GPS1.5G 5.2G 5.8G Portable Drone Jammer Blocker Manufacturer
Descriptions:
SA-NJ06 is a portable UAV drone signal jammer with 5 channels 900mhz, GPSL1 1.5Ghz, WiFi 2.4Ghz, WiFi 5.2Ghz and WiFi 5.8Ghz. Total 135w high power, large jamming distance is up to 3km for DJI Mavica 2. Built-in battery with 40 mins working after full charge. LCD display battery capacity design, client can customize the frequencies and power they want. This handheld drone jammer device is only 4.35kgs weight. Easy to transport and carry.
Use instructions:
1. 900MHz/1.6G/2.4G/5.2G/5.8G are fully turned on, and the UAV is forced to land. (For the UAV's own flight control system without the function of forced landing, it cannot be forced to land);
2. Turn on 900MHz/2.4G/5.2G/5.8G, lose control of the drone when GPS is turned off, and the drone will return to flight at this time;
3. First select the "Band Button Switch" to determine the function that needs to counter the drone;
4. Align the front of the device with the drone. At this time, the "frequency band button switch" displays "blue light", indicating that it has started to work. Adjusting the direction as the drone moves can better counter the drone;
5. "Power display" can know the power status, check the power after each use, if it is lower than 30%, it needs to be charged in time.
| Functions | State | Drone type | Notices |
| Return | Open 900MHz/2.4G/5.2G/5.8G | Consumer Drones | Point the device at the drone, and the drone will drive away and return to the take-off position |
| Forced landing | Open all 900MHz/1.6G/2.4G/5.2G/5.8G | Consumer Drones | For drones whose own flight control system has no forced landing function, forced landing is not possible |
Specifications:
| Channel | Working Frequency | Output power(w) |
| CH1 | 2.4G 2400-2485MHz | 40w |
| CH2 | 5.8G 5725-5850MHz | 50w |
| CH3 | GPSL1, Glonass, BDS | 1550-1620MHz | 10w |
| CH4 | 5.2G 5150-5250MHz | 25w |
| CH5 | 900MHz 860-930MHz | 10w |
| Battery capacity | 24V10A/H |
| Counter ability | return |
| Total Output power | 135W |
| Battery working time | 40 mins |
| Jamming distance | 2.5~3km(Mavica2) |
| Counter angle | 30 degree |
| Working temperature | -20ºC to +55ºC |
| Charging method | 29.4V charging adapter |
| Weight | 4.35kgs |
| Size | 334*223*140mm |
Applications:
Airports, Public Procuratorate System, Prisons, Detention Centers, Drug Rehabilitation Centers, Secrecy Agencies, Military Forces, Large Competitions Events, concerts, important meetings, government agencies, anti-terrorist fields and other important locations and facilities require air Areas that are kept secret and controlled by drones.
Packing lists:
drone signal jammer
power adapter
alum case

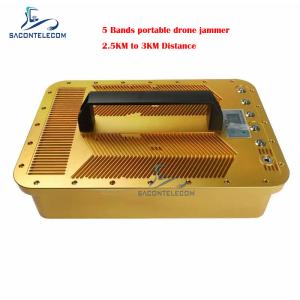

Photo of drone jammer device:
